Product Dimensions 11.81"h x 34.44"w x 4.72"d

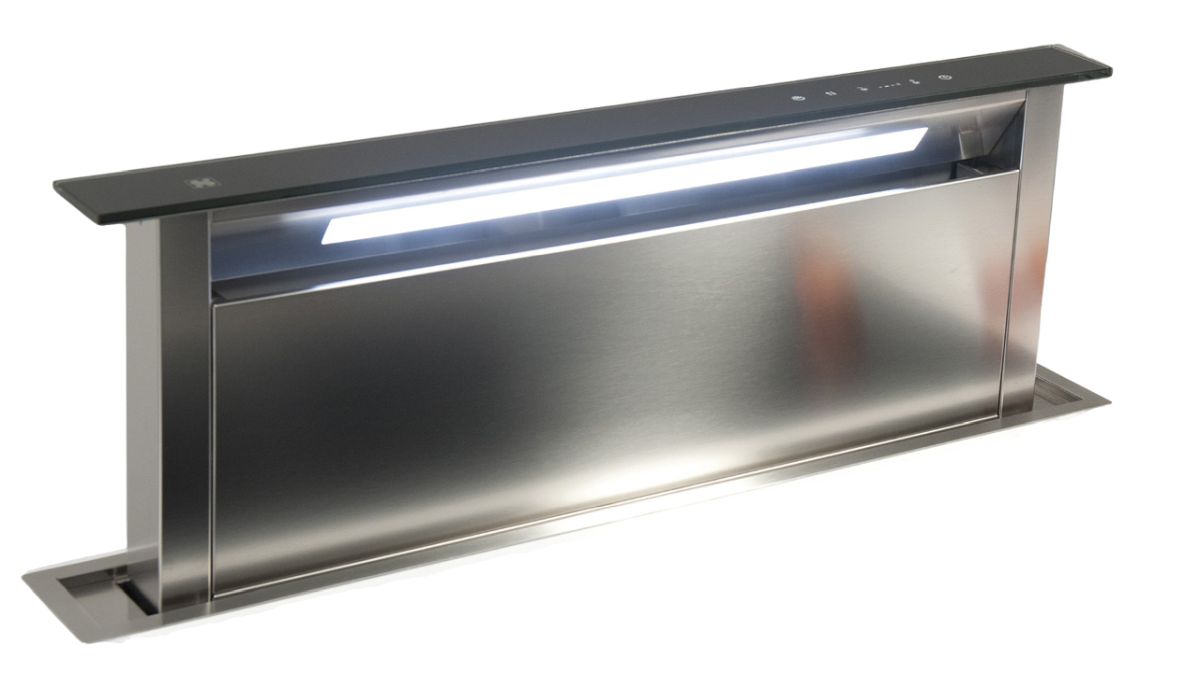

Downdraft hood with a minimal design. Through the touch control it is activated and rises from the kitchen top, and then hides when the cooking is finished. Black glass cover with touch control and body in stainless steel Aisi 304. Lighting system by LED bar.Read More
View Options
Motor: motor on board or external motor (not included, to be purchased separately)
Lighting: 1 x 5W LED strip
Control Panel: Touch control 4 speeds+delay off timer+light switch
Grease filter: anodized aluminium (5 layers)
Air Outlet: 6" round (front and back) or rectangular 9 11/16" x 3 5/32" (sides and below)
Cut Out: 3 15/16" x 33 5/32"
General Specs | |
| Width (in.) | 34.44 |
| Height (in.) | 11.81 |
| Duct Size (in.) | 6" Round |
| Depth (in.) | 4.72 |
| Color | Stainless Steel |
| Color/Finish Name | Stainless Steel |
| Range Hood Type | Downdraft |
| Appliance Fit Width (in.) | 36 |
| Grease Filter Type | Aluminum Mesh |
| Bulb Type | LED |
| Fan Speed Options | 4 |
| Range Hood Features | Retractable |
| Ventilation Type | Ducted |
