Product Dimensions 11.81"h x 19.44"w x 11.44"d

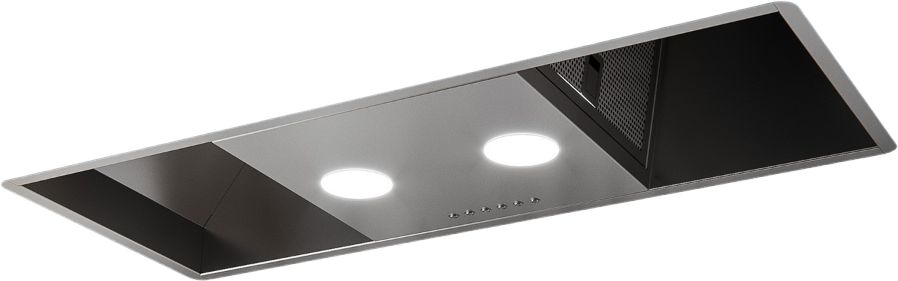

Custom 20" Hood Power Pack Insert with 600 CFM Internal Blower, 4 Speed Push Button Controls and Two LED Spot Lights and Anodized Aluminum Grease Filters.Read More
View Options
Motor: 600 CFM aluminium die-cast motor housing
Pressure: 480Pa
Noise level 63 dBA/4.9 sones
Lighting: Spot light LEDs 2 x 2.1W
Control Panel: chromed 4 speed push-button + delay off timer + light switch
Grease filter: anodized aluminium (4+1 layers)
Air outlet: 6” round
Discharge: vertical
General Specs | |
| Width (in.) | 19.44 |
| Height (in.) | 11.81 |
| Duct Size (in.) | 6" Round |
| Depth (in.) | 11.44 |
| Color | Stainless Steel |
| Color/Finish Name | Stainless Steel |
| Range Hood Type | Insert |
| Appliance Fit Width (in.) | 20 |
| Maximum CFM | 600 |
| Grease Filter Type | Aluminum Mesh |
| Bulb Type | LED |
| Sones Rating | 4.9 |
| Fan Speed Options | 4 |
| Ventilation Direction | Vertical |
| Noise Level (Sones) | Standard - (High) |
| Ventilation Type | Ducted |
